VL Mt Panorama
|
|
|
|
|
In commemoration of Brocks 1987 Bathurst win, the 'one off' VL Mount
Panorama was created. While many publications state that the car is a Calais based Brock, the Mt Panorama actually started
life as an SL/Executive. HDT subsequently fitted the Calais pop-ups, bilstein shocks and re-worked the 5.0 litre V8 engine
with heavy duty con rods and crankshaft as well as Crane roller rockers as per the Group A power plant.

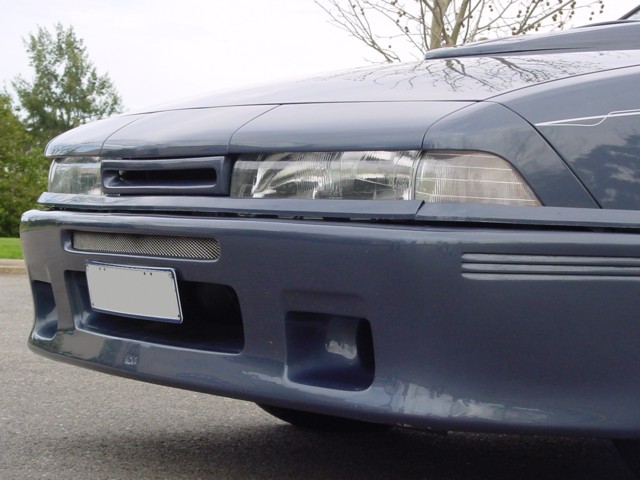

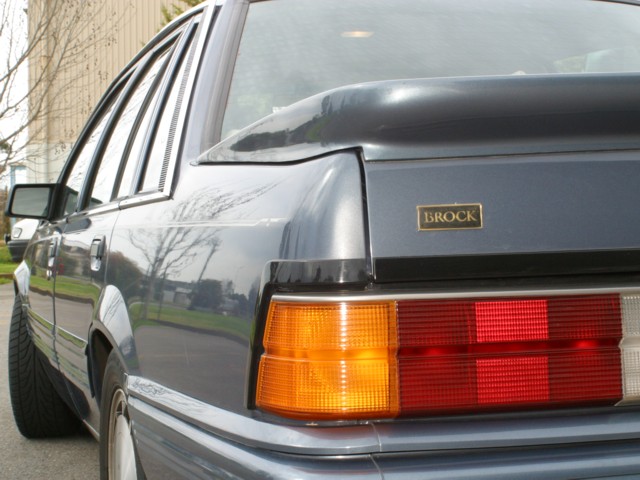

The bodykit consisted of a variety of Brock pieces with the car wearing the Group A's rear boot spoiler, Group A air
intake (which was integrated with the engines Cold Air intake system), a Group A grille and Group Three signature series

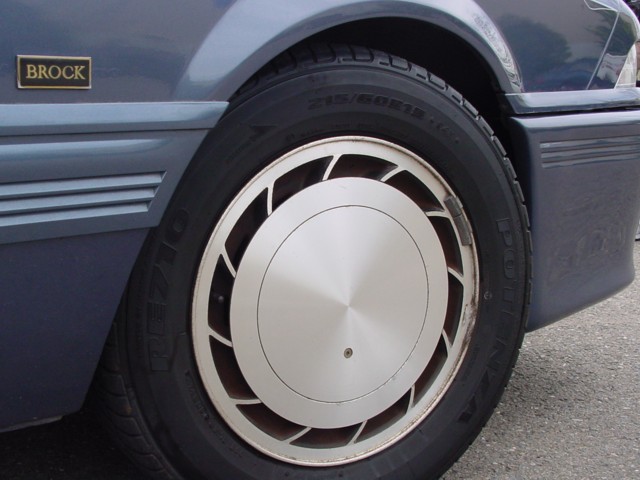

front air damn. Wheels were originally the 16x7 Aero's, but were changed in favout of the 15x7" Aero wheel with the fluch fitting covers.
| Factory Specs | |
| Engine: | 4.987 Litre V8 Overhead valve, 2 valves per cylinder. Bore x Stroke (mm): 101.6 x 76.8. Compression ratio: 8.5:1. Max Power: unknown, Max Torque: unknown |
| Induction: | Port matched inlet manifold and four barrel Rochester carburetor with cold air induction. |
| Transmission: | Three Speed Auto. Ratios: 1st: 3.250 2nd: 1.990 3rd: 1.290 |
| Clutch: | Single Dry Plate |
| Differential | 3.08:1. |
| Steering: | Power assisted Rack & Pinion. |
| Suspension: | Front: Fully independent. Macpherson struts with coil springs and anti-roll bar. Rear: Live axle located by trailing arms and Panhard rod. Coil springs and anti-roll bar. Bilstein gas-pressurised shock absorbers all round. |
| Brakes: | Power assisted front and rear discs. |
| Wheels & Tyres: | 15" x 7" HDT Aero rims with Uniroyal E60H15 tyres. |
| Performance: | Unknown. |
| Fuel Tank: | 63 Litres. |
| Number Built: | 1. |
| Prices: | Unknown. |
| Kerb Mass: | 1295kg. |
